Microscope Inverted
Product Details
Description

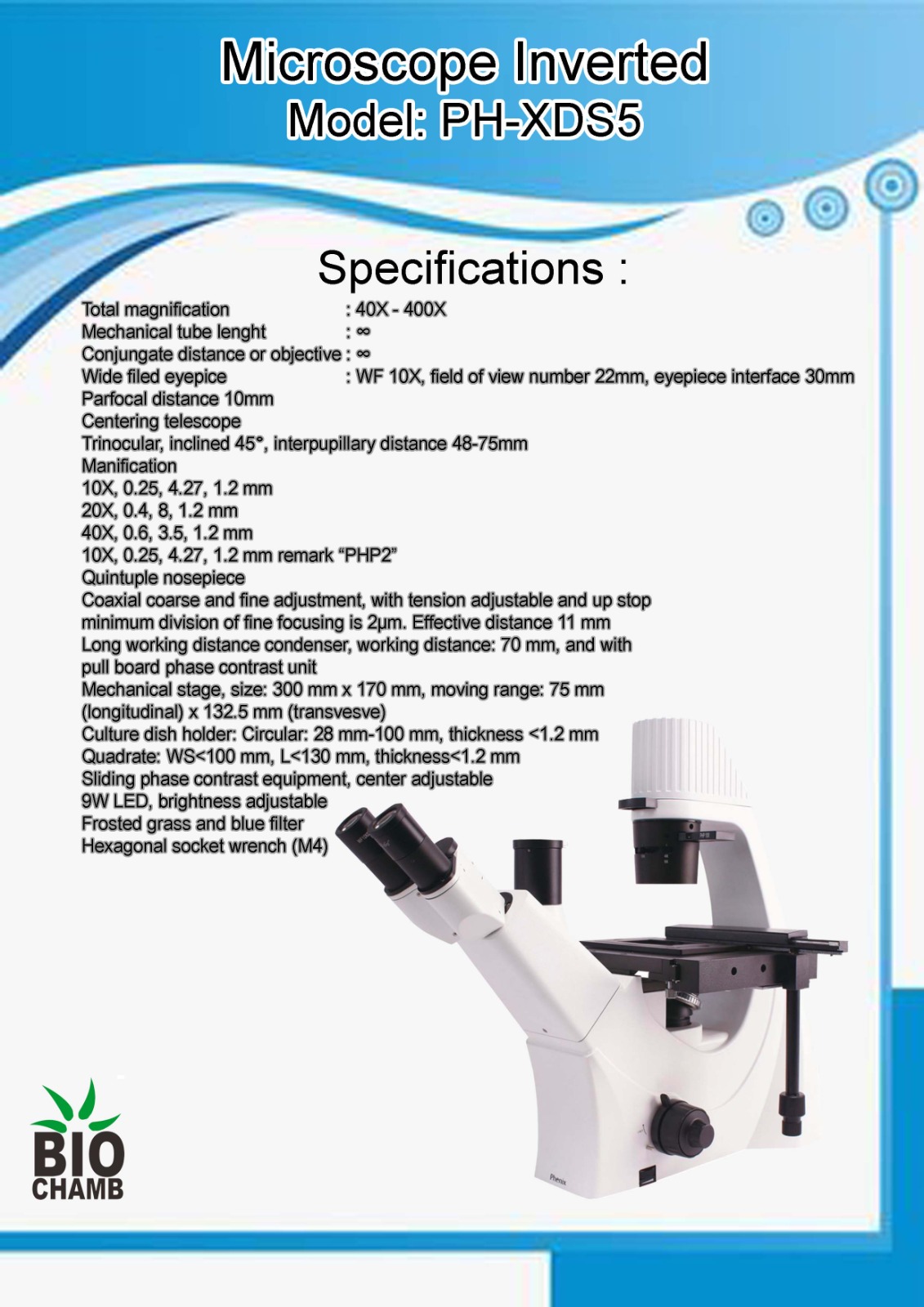

Microscope Inverted PH-XDS5 adalah mikroskop laboratorium profesional dengan sistem trinokuler dan pembesaran total 40X–400X, ideal untuk pengamatan kultur sel dan jaringan.Dilengkapi WF 10X wide field eyepiece, fase kontras geser (phase contrast), serta LED 9W dengan kecerahan yang dapat diatur, mikroskop ini memberikan hasil visual yang jernih dan presisi.Dengan meja mekanik 300×170 mm, fokus halus 2µm, dan condensor jarak kerja panjang 70 mm, alat ini cocok untuk riset bioteknologi, farmasi, dan pendidikan tinggi.
Specifications
Mechanical_tube_length
∞
Model
PH-XDS5
Trinocular_inclined_45_deg_interpupillary_distance_mm
48–75
Centering_telescope
true
Conjugate_distance_or_objective
∞
Wide_field_eyepiece
WF 10X, field of view number 22mm, eyepiece interface 30mm
Total_magnification
40X - 400X
Magnification - 2
20X, 0.4, 8, 1.2 mm
Parfocal_distance_mm
10
Magnification - 1
10X, 0.25, 4.27, 1.2 mm
Nosepiece
Quintuple
Magnification - 4
10X, 0.25, 4.27, 1.2 mm remark 'PHP2'
Condenser - Working_distance_mm
70
Magnification - 3
40X, 0.6, 3.5, 1.2 mm
Mechanical_stage - Size_mm
300 × 170
Focus_adjustment - Minimum_division_of_fine_focusing_μm
2
Focus_adjustment - Effective_distance_mm
11
Mechanical_stage - Moving_range_mm
75 (longitudinal) × 132.5 (transverse)
Filters
Frosted glass and blue filter
Condenser - Unit
Pull board phase contrast unit
Focus_adjustment - Type
Coaxial coarse and fine adjustment with tension adjustable and up stop
Condenser - Type
Long working distance condenser
Culture_dish_holder - Circular
28 mm–100 mm, thickness <1.2 mm
Culture_dish_holder - Quadrate
WS<100 mm, L<130 mm, thickness <1.2 mm
Phase_contrast_equipment - Type
Sliding
Illumination - Brightness_adjustable
true
Tools
Hexagonal socket wrench (M4)
Illumination - Type
9W LED
Phase_contrast_equipment - Center_adjustable
true
